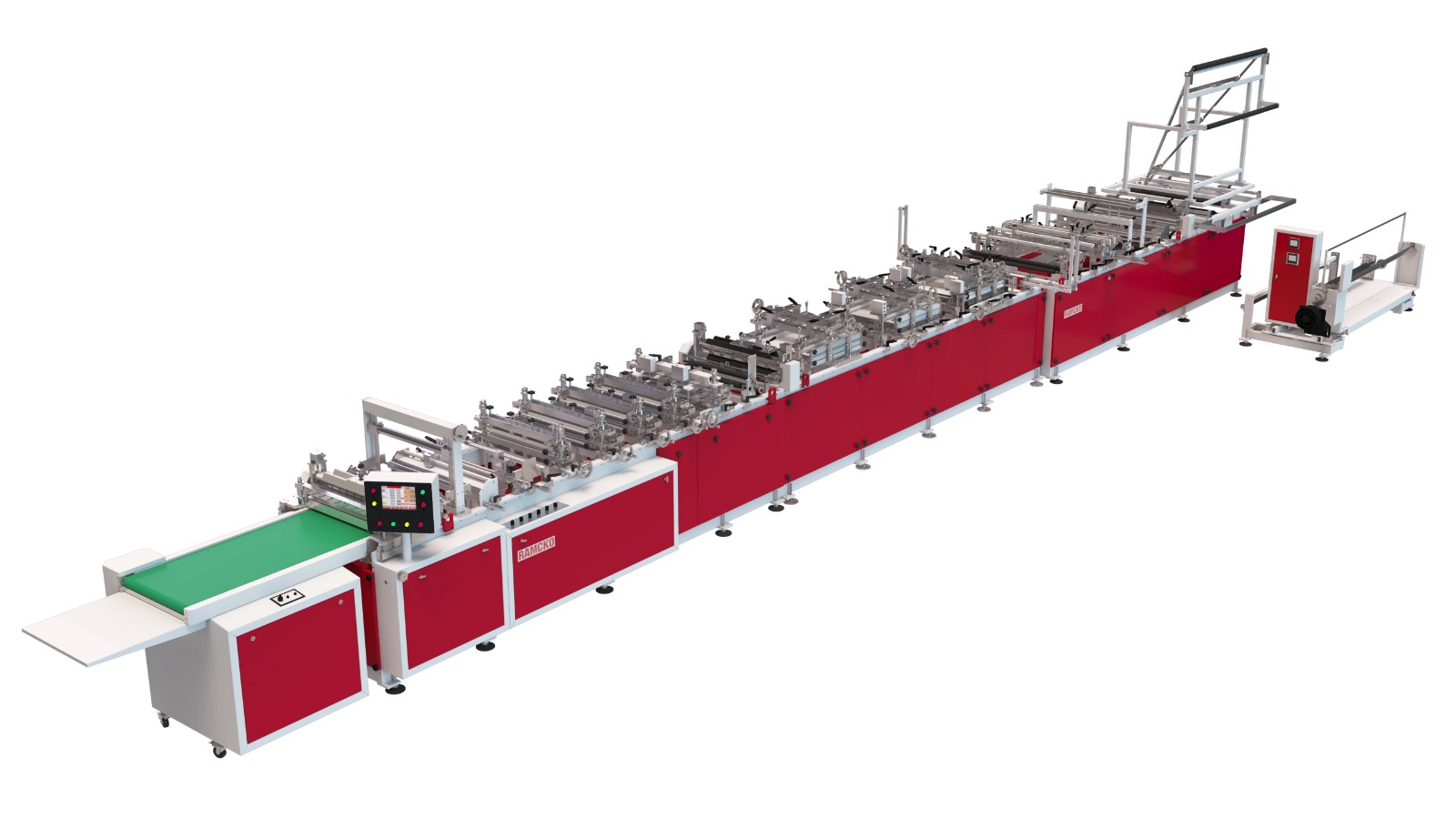

Compact Standup Pouch Machine
The COMPACT STANDUP POUCH MACHINE by RAMCKO MACHINERY PVT. LTD. is designed for efficient production of various pouch types like stand-up, zipper, and gusset pouches. Its compact structure, high-speed operation, and advanced sealing technology ensure precision, flexibility, and consistent performance across multiple packaging applications.
The COMPACT STANDUP POUCH MACHINE by RAMCKO MACHINERY PVT. LTD. is a high-performance, space-efficient solution for manufacturing various stand-up pouch formats. Engineered for precision and durability, this machine is ideal for medium to large-scale production. It supports an extensive range of pouch types and ensures consistent sealing quality with high-speed output.
This machine is specially designed for handling multiple bag types such as 3-side seal pouches, stand-up pouches, zipper pouches, bottom gusset pouches, and more. With compact design and streamlined operation, it delivers outstanding efficiency while maintaining excellent pouch integrity and aesthetics.
Features
- Compact and modular design for space-saving installation
- High-speed output with consistent sealing performance
- Compatible with various films including laminated and recyclable materials
- Advanced control system with intuitive user interface
- Easy maintenance and quick changeover for different pouch sizes
- Energy-efficient and durable mechanical components
- Precise tension control and pouch alignment for premium finish
Bag Type
Stand-up pouches/ Zipper pouches
Bottom Gusset Pouches
Doypack Pouches
Vacuum Pouches
K Seal Pouches
3-side seal pouches
Machine Specification
- Machine Name: COMPACT STANDUP POUCH MACHINE RAMA 403SZP AND MACHINE SPEED (CYCLE /MIN – 150)
- Brand: RAMCO MACHINERY PVT. LTD
- Production Type: Fully Automatic
- Applications: Ideal for food packaging, pharma, FMCG, and other retail sectors
- Operation: Servo-controlled for accuracy and stability
| Film Type and Thickness | ( In Microns ) | |
|---|---|---|
| Laminates Of Polyester | 60 | 150 |
| Vacuum Film PA + PE ( 3 Layer / 5 Layer / 7 Layer / 9 Layer ) |
60 | 150 |
| MDOPE ( Recyclable Pouches ) | 60 | 150 |
| Product Size Range | ||
|---|---|---|
| Pouch Type | Minimum (mm) | Maximum (mm) |
| Three Side Seal Pouch | Width: 75 Length: 150 |
Width: 400 Length: 400 |
| Three Side Seal Pouch with Zip | Width: 100 Length: 400 |
Width: 150 Length: 350 |
| K Seal Pouch with Zip | Width: 100 Length: 150 |
Width: 350 Length: 350 |
| Stand-Up Pouch with Zip | Width: 100 Length: 150 |
Width: 400 Length: 300 |
| Vacuum Pouches | Width: 100 Length: 100 |
Width: 400 Length: 350 |
