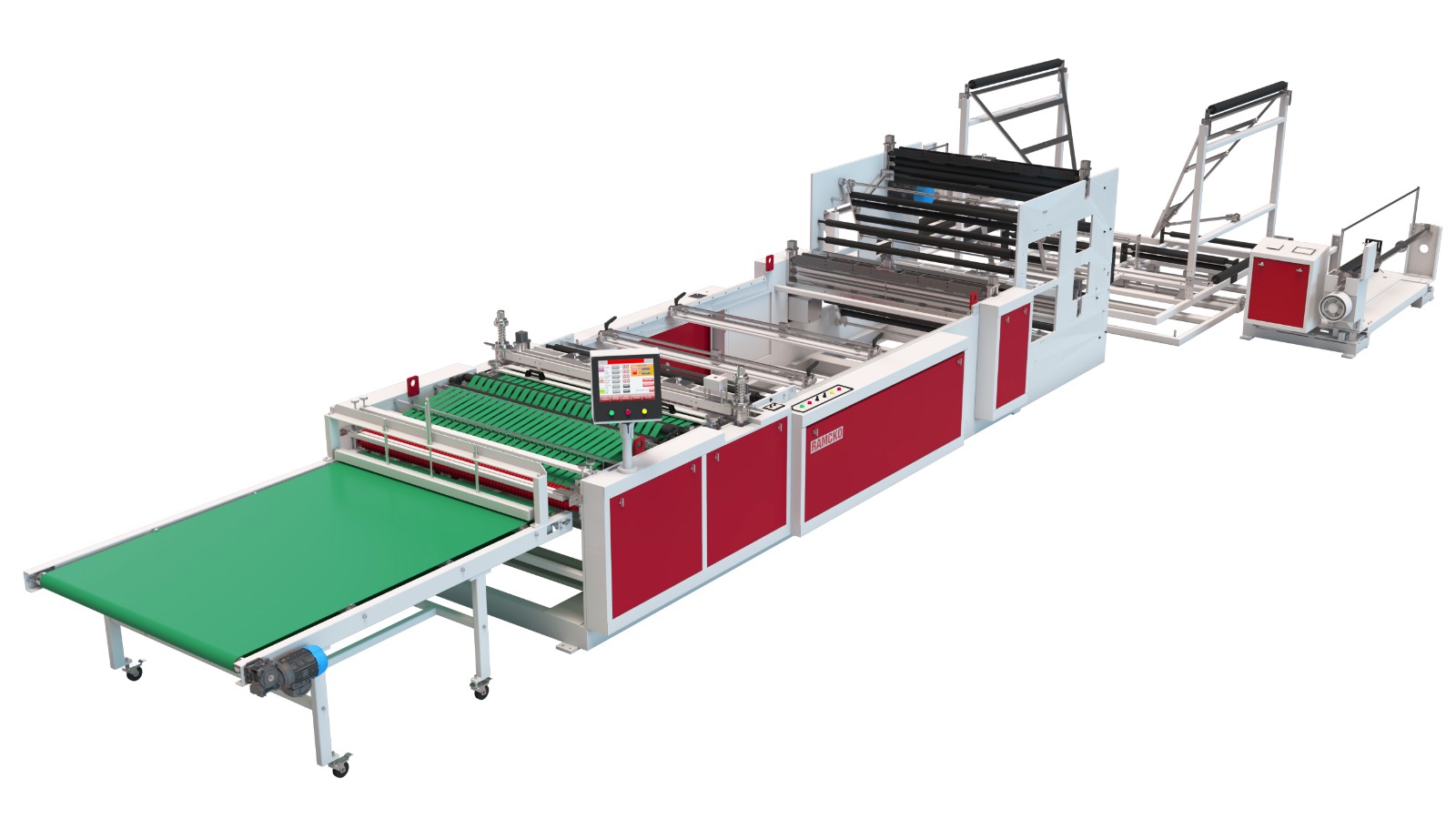

Dual Lane Side Seal Bag Maker

The Dual Lane Side Seal Bag Maker by Ramcko Machinery PVT LTD is a high-speed, high-efficiency machine designed to run two independent lanes or a single full-width film. Ideal for maximizing output, it supports various films like LDPE, HDPE, BOPP, and PP for versatile pouch production.

Contact Us Category:
Description

The RAMA 1401-DLS is a high-efficiency dual lane side seal pouch maker designed to run two separate printed lanes or a single full-width film. It is built to maximize production flexibility and output with minimal downtime.

It supports a wide range of materials and is suited for industries looking for reliable dual lane side seal pouch forming equipment and automated dual lane side seal bag makers. This machine is compact, robust, and engineered to meet the demands of high-volume plastic bag production.

Features

Features

  • Compatible with multiple bag types including plain,printed, perforated, hanger hole, and side-sealed bags.
  • Ideal for manufacturers looking to buy dual lane side seal bag machines for industrial-grade usage.
  • Suitable for compact dual lane side seal bags applications for individual two lane printing film can run on this machine.
  • Offered by leading dual lane side seal side seal machine suppliers in India.
  • Designed for performance in industrial dual lane side seal bag maker operations.
  • Also available in configurations for desktop dual lane side seal bag maker and portable dual lane side seal bag maker applications.
  • Multi-Servo Control for Dual Lane and Wide Web Operation
  • The machine utilizes multiple servo motors to independently control the feeding of both lanes, allowing it to run dual-lane printing jobs with different sizes and print registrations simultaneously.
  • Additionally, the system can be configured to run wider width film—up to 1300 mm—on the same machine, with all servos operating in perfect synchronization for precise web handling and alignment.
  • Precision parts available for service and support from trusted dual lane side seal bag maker manufacturers.
Bag Type

Bag Type

Side seal with zip

Side seal zip with handle punch

Side seal with gusset bag

Security/mailer bag with Pocket

BOPP flap with seal king tape

Machine Specification

Machine Specification

Model RAMA 1401-DLS
Speed (cycles/min) 140
Bag Width (mm) 100–650
Bag Length (mm) 300–650 (Dual lane) & 100-1350 (single lane)
Film Thickness (Microns) 20–80
Connected Load Basic M/C (Kw) 15
Air Supply (Ltr/Min) 800
Material Compatibility LDPE, HDPE, BOPP, PP
