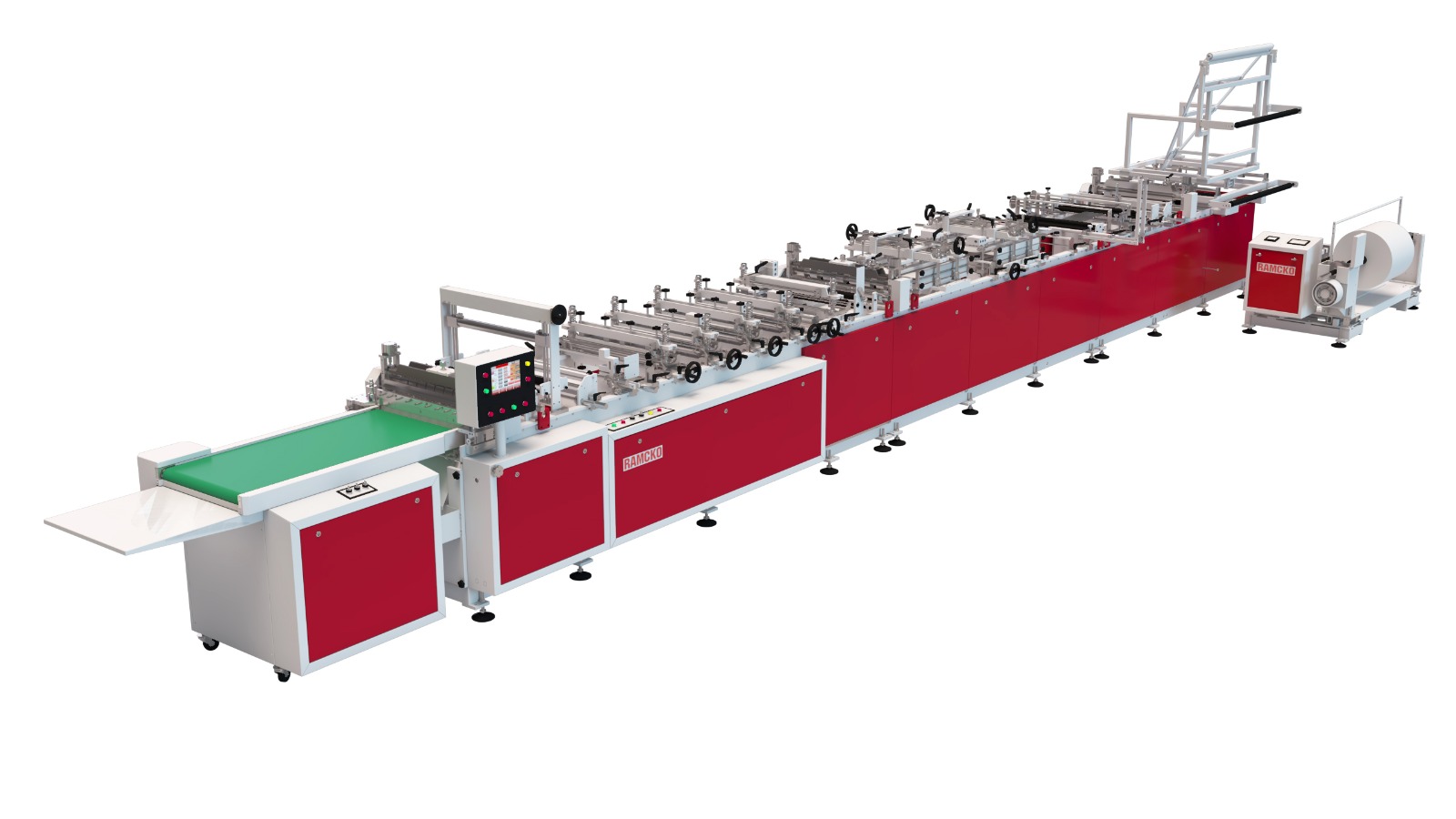

Five Side Seal Pouch Machine
The FIVE SIDE SEAL POUCH MACHINE by RAMCKO MACHINERY PVT. LTD. offers high-speed, multi-format pouch production including three-side, five-side, stand-up, and zipper pouches. With dual-lane capability, gusset film insertion, and modular attachments, it ensures flexibility, precision, and efficiency for diverse packaging applications.
The FIVE SIDE SEAL POUCH MACHINE by RAMCKO MACHINERY PVT. LTD. is a high-performance, multi-format pouch-making solution designed for producing three-side seal, stand-up, and five-side seal pouches—with or without zippers. Built for flexibility and high efficiency, the machine features modular attachment options and supports dual-lane pouch production to enhance output without compromising quality.
With its optional bottom gusset film insertion system and robust design, this machine is ideal for manufacturers seeking to deliver diverse pouch types in the food, pharma, and industrial packaging segments. It guarantees precision, durability, and scalability in every production cycle.
Features
- Multi-format pouch production: Supports stand-up, three-side seal, and five-side seal formats
- High versatility through interchangeable attachment modules
- Optional bottom gusset insertion for added pouch depth and capacity
- Dual-lane operation for enhanced output efficiency
- Designed to handle laminates of polyester with film thickness from 60 to 150 microns
- Accurate sealing and cutting functions for consistent pouch quality
- Suitable for zipper pouch production and vacuum pouch for packaging
Bag Type
Three Side Seal Pouches
Five Side Seal Pouches
K Seal Pouches

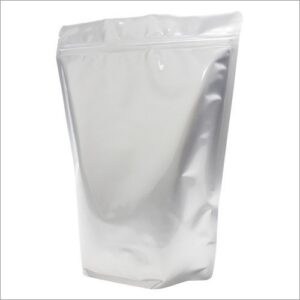

Stand-Up Pouches with Zipper
Vacuum Pouches
Machine Specification
| Model | RAMA 607FSSZP |
|---|---|
| Speed (cycles/min) | 150 |
| Product Size Range | ||
|---|---|---|
| Pouch Type | Minimum (mm) | Maximum (mm) |
| Three Side Seal Pouch | Width: 75 Length: 100 |
Width: 500 Length: 500 |
| Three Side Seal Pouch with Zip | Width: 100 Length: 100 |
Width: 500 Length: 500 |
| K Seal Pouch with Zip | Width: 100 Length: 150 |
Width: 500 Length: 500 |
| Stand-Up Pouch with Zip | Width: 100 Length: 150 |
Width: 400 Length: 500 |
| Vacuum Pouches | Width: 100 Length: 100 |
Width: 550 Length: 500 |
Film Type and Thickness
| Film type | Minimum (Micron) | Maximum (Micron) |
|---|---|---|
| Laminatespolyster | 60 | 150 |
