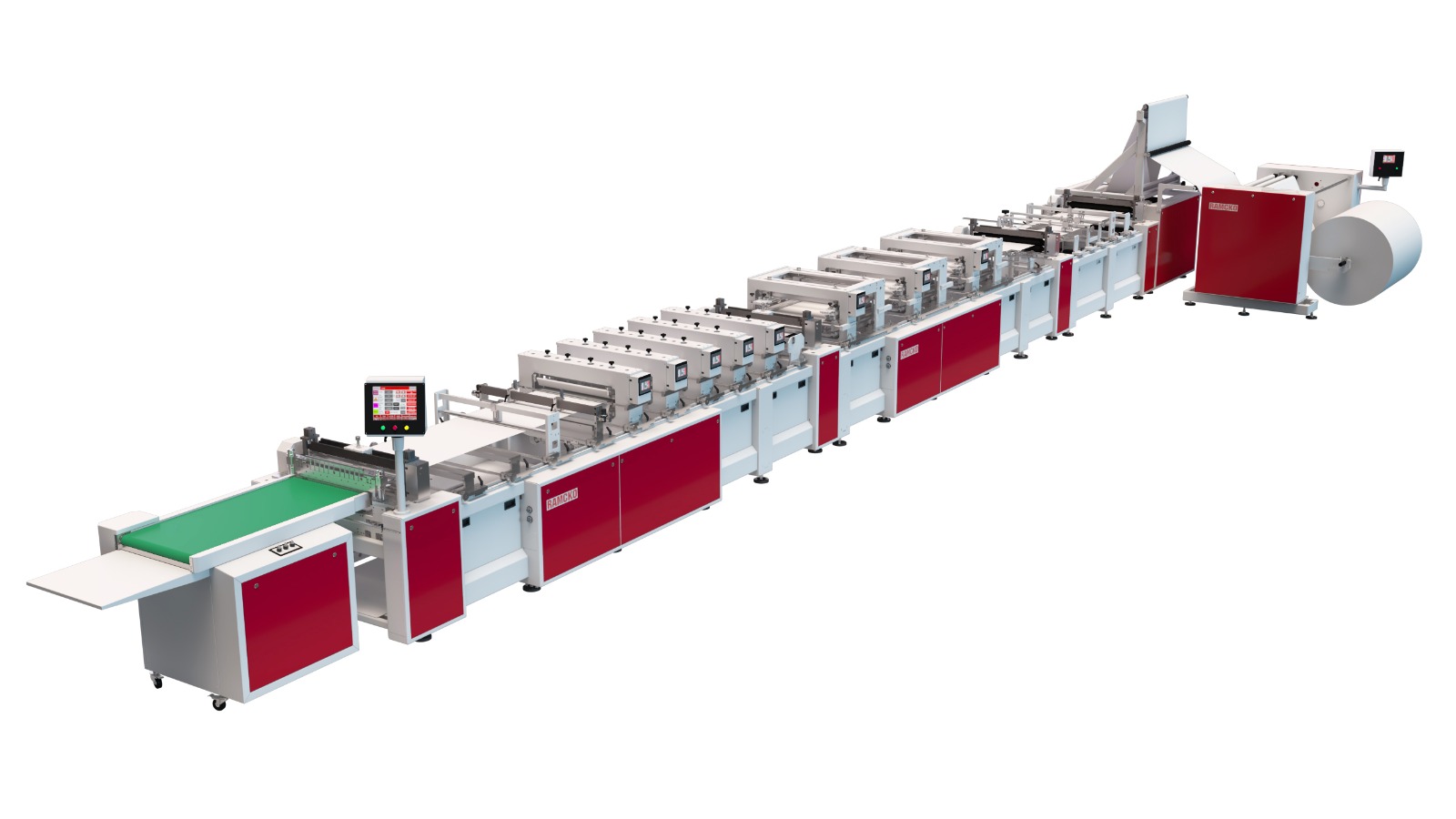

Full Servo Standup Pouch Machine
The FULL SERVO STANDUP POUCH MACHINE by RAMCKO MACHINERY is a high-speed, servo-driven system designed for precise pouch-making. It supports various pouch types, including zipper, vacuum, and recyclable formats, offering up to 200 cycles per minute with excellent sealing control and compatibility with multiple film types.
The FULL SERVO STANDUP POUCH MACHINE by RAMCKO MACHINERY PVT. LTD. is designed for high-speed, precision pouch-making operations, delivering unmatched versatility and control. Engineered with full servo-driven stations, this advanced machine ensures tight sealing accuracy and consistent output speed. Ideal for manufacturers seeking superior performance and adaptability, the machine supports various pouch formats including Side Seal Pouches, Stand-Up Zipper Pouches, and Vacuum Pouches. Whether you’re working with standard laminates, recyclable films, or high-barrier materials, this machine offers seamless conversion with optimal film handling.
Features
- High Pouch Versatility: Capable of producing
- Side Seal Pouches (with or without zipper)
- Stand-Up Zipper Pouches
- Vacuum Pouches
- Precision Sealing System: Full servo-driven technology ensures accurate sealing with excellent consistency, minimizing waste and increasing productivity.
- Advanced Seal Control: Features a full-servo mechanism for exact control over seal time, temperature, and pressure, allowing fine-tuning for various film types.
- Film Compatibility: Supports a wide range of laminates including Laminates of Polyester, PE (3 Layer / 5 Layer / 7 Layer), and MDOPE films for recyclable pouches.
- Eco-Compatible Design: Built for sustainability – compatible with recyclable and high-barrier films, making it suitable for both conventional and modern packaging needs.
- Production Speed: Delivers up to 200 cycles/min, maintaining consistent quality throughout.
Bag Type

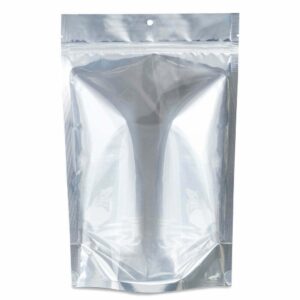

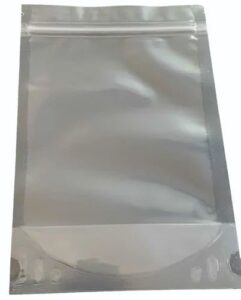

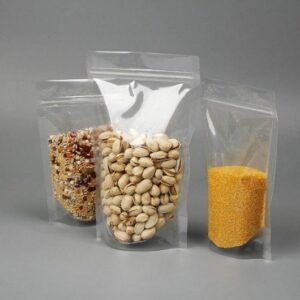

Stand-up pouches/ Zipper pouches

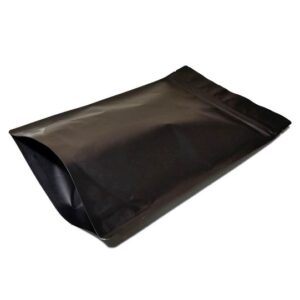

Bottom Gusset Pouches

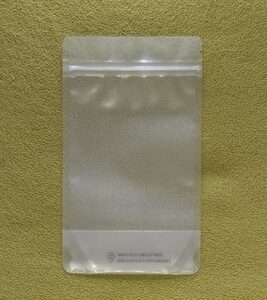

Doypack Pouches

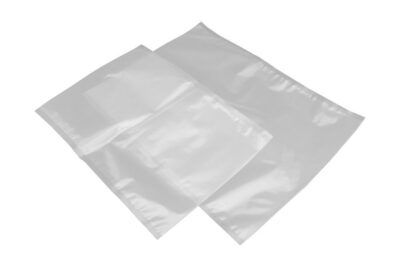

Vacuum Pouches

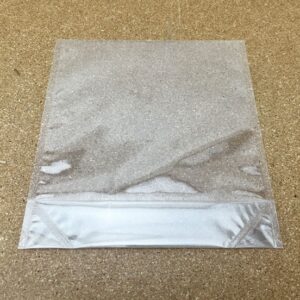

K Seal Pouches

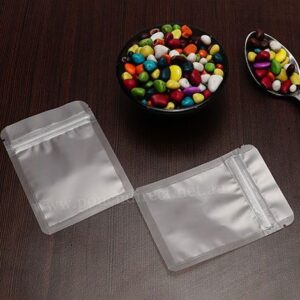

3-side seal pouches
Machine Specification
- Model Name: RAMA 603SZP-FS
- Speed: Up to 200 cycles/min
| Product Size Range | ||
|---|---|---|
| Pouch Type | Minimum (mm) | Maximum (mm) |
| Side Seal Pouch | Width: 75 Length: 100 |
Width: 500 Length: 600 (with skip) |
| Side Seal Pouch with Zip | Width: 100 Length: 150 |
Width: 500 Length: 500 |
| K Seal Pouch with Zip | Width: 100 Length: 150 |
Width: 500 Length: 500 |
| Stand-Up Pouch with Zip | Width: 100 Length: 150 |
Width: 400 Length: 500 |
| Vacuum Pouches | Width: 100 Length: 150 |
Width: 550 Length: 500 |
| Film types and thickness | ||
|---|---|---|
| Micron minimum | Micron Maximum | |
| Lamination of polyester | 60 | 150 |
| Vacuum film PA +PE (3layer / 5layer/ 7layer / 9 layer) | 60 | 150 |
| MDOPE (Recyclable Pouches) | 60 | 150 |
