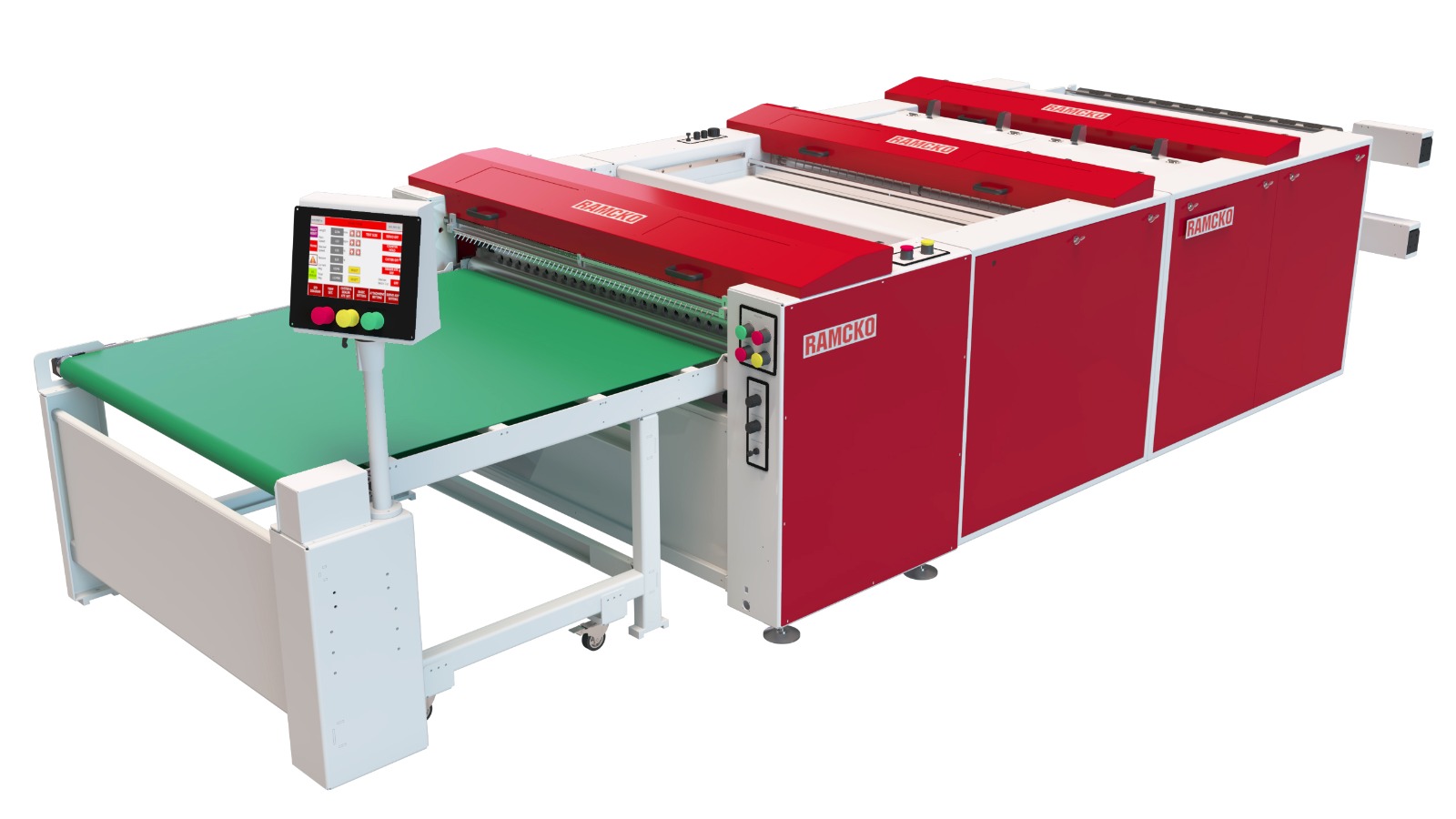

High Speed Flying Knife Bottom Seal Machine

The High Speed Flying Knife Bottom Seal Machine by RAMCKO MACHINERY PVT. LTD. is a precision-engineered, servo-driven bag-making machine ideal for LDPE/HDPE films. Designed for high-speed production, it offers strong sealing, versatile attachments, and supports various bottom seal bag types. Perfect for industrial use in India.

Contact Us Category:
Description

The High Speed Flying Knife Bottom Seal Machine by RAMCKO MACHINERY PVT. LTD. is a high-performance bag-making solution designed for superior precision, speed, and consistency. Engineered with a multi-servo drive system, this advanced machine delivers exceptional cutting accuracy and strong bottom sealing—ideal for high-volume industrial production. Compatible with LDPE and HDPE materials, it meets the demands of modern manufacturing with unmatched reliability.

This Flying Knife Bottom Seal Bag Machine supports a wide range of optional attachments, increasing versatility across various bag-making applications. Whether you are looking for a High Speed Bottom Seal Bag Machine, a Heavy Duty Bottom Seal Machine India, or an Industrial Bottom Seal Bag Machine, this model is designed to enhance your production line’s efficiency and output.

Features

Features

  • Material Compatibility: LDPE, HDPE
  • Servo System: Advanced 5-Servo System for enhanced accuracy and stability
  • Speed: Up to 150 cycles/min (Model 1204 HFBS )
  • Bag Width Range: 200 mm – 1150 mm
  • Bag Length Range: 150 mm – 2500 mm
  • Film Thickness: 20 – 250 microns
  • User-Friendly Interface: Easy-to-use control panel with touch display
  • Heavy Duty Construction: Engineered for continuous operation in demanding environments
  • Connected Load: 12 – 14 kW
  • Air Supply Requirement: 1200 Ltr/Min

Optional Attachments for Enhanced Versatility

  • Ground Pickup Unit
  • Double Unwinder Station
  • Punch Bank
  • Handle Punch
  • Slit Seal Unit
  • Post Gusseting
  • Four Finger Hole Punch
  • Pin Perforation Roller Unit
  • Twin Sealer Unit (Pneumatic or Servo)
Bag Types

Bag Types

The machine supports the production of various bottom seal bag types as illustrated, including:

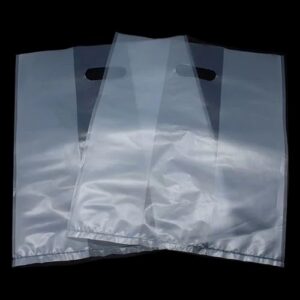

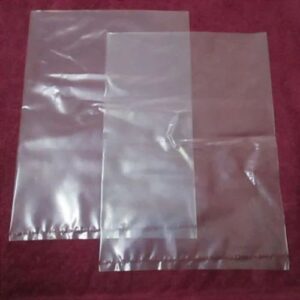

Bottom Sealed Bags

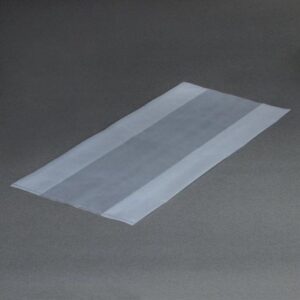

Bottom Sealed Gusseted Bags

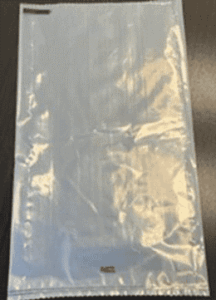

Bottom Seal Bag with Spine Seal

Machine Specification

Machine Specification

MODEL RAMA 1204 HFBS RAMA 1402 HFBS
Speed (cycles/min) 150 130
Bag Width (mm) 200 – 1150 200 – 1350
Bag Length (mm) 150 – 2500 200 – 2500
Film Thickness (microns) 20 – 250 20 – 250
Connected Load (Basic M/C kW) 12 14
Air Supply (Ltr/Min) 1200 1200
