Side Seal Bag Making Machine

A versatile side seal machine compatible with BOPP, LDPE, HDPE, PP, and CPP films, offering precision and efficiency. Optional attachments include edge guide system, gusset unit, film folding, header sealer, punching, and more for multi-purpose applications.

Contact Us Category:
Description

Ramcko Machinery PVT LTD introduces a high-precision, versatile Side Seal Bag Making Machine—designed for seamless performance across a wide range of films and bag types. Whether for mono or multi-layer films, this machine ensures reliable sealing, consistent productivity, and ease of use. With customizable options, it meets the diverse demands of modern flexible packaging industries.

The Side Seal Machine is compatible with a variety of films including BOPP, LDPE, LLDPE, HDPE, PP, and CPP, ensuring maximum flexibility in production.

Features

Features

  • High-Speed Production: Models operate from 300 to 350 cycles/min, catering to both small-scale and high-speed operations.
  • Wide Bag Size Range: Bag lengths from 100 mm to 1350 mm and bag widths from 75 mm to 700 mm, adaptable to various product packaging requirements.
  • Film Compatibility: Handles film thickness from 15 to 80 microns, ideal for a wide variety of packaging films.
  • Efficient Power Usage: Energy-efficient design with connected load ranging from 7.5 kW to 18 kW, based on the model.
  • Air Supply Requirement: Minimal air supply needs, ranging from 500 to 800 Ltr/Min.

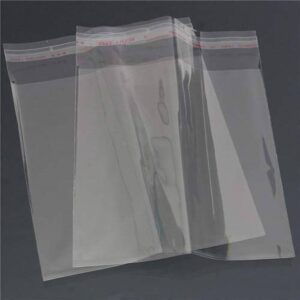

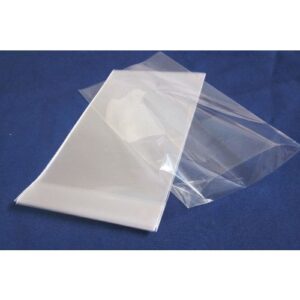

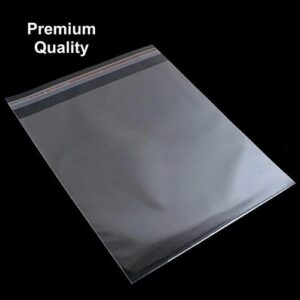

Bag Type

Bag Type

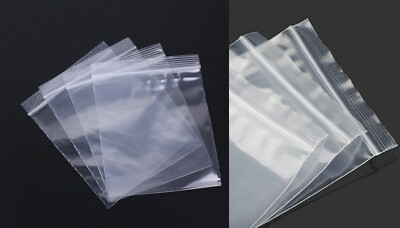

Side seal with zip

Side seal zip with handle punch

Side seal with gusset bag

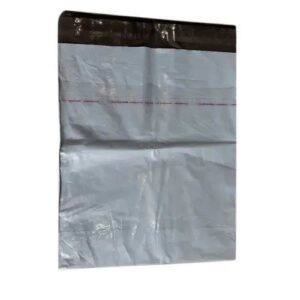

Security/mailer bag with Pocket

BOPP flap with seal king tape

Machine Specification

Machine Specification

Model Variants & Specifications

Model Speed (cycles/min) Bag Length (mm) Bag Width (mm) Film Thickness (Microns) Load (kW) Air Supply (Ltr/Min)
RAMA 550SS 350 100–500 28–500 15–80 7.5 500
RAMA 604SS 350 200–550 75–500 15–80 7.5 600
RAMA 802SS 350 200–750 75–600 15–80 10 600
RAMA 1000SS 250 250–950 75–700 20–80 12 600
RAMA 1207SS 220 300–1150 100–700 20–80 15 700
RAMA 1405SS 200 400–1350 100–700 20–80 18 800
